Designing feedback control in synthetic biology

Synthetic biology is the "engineering of biology": it aspires to use the engineering design cycle to produce bio-circuits that behave predictably and reliably, usually with specific applications in mind. Synthetic biology has the potential to create new industries and technologies in several sectors, from agriculture to the environment, and from energy to healthcare. Some of these applications require synthetic biology designs to be scaleable, so that small circuits can be composed to form larger systems. Currently, however, even small bio-circuits seldom function as expected because of the high level of uncertainty in the cellular environment, as well as the way poorly-characterized parts are assembled together and the lack of a systematic framework for integrating parts to form systems. This is a major challenge that needs to be overcome in order for the potential of synthetic biology to be fulfilled and for industry and society to reap the rewards.

Natural systems use several mechanisms to overcome this major challenge. The most important one involves careful use of feedback control. This is done at all levels of organisation - from the genetic, metabolic and cellular levels to the systems level. The regulation of biochemical processes inside a cell is key to ensuring robust functionality, despite the high levels of environmental uncertainty and intrinsic and extrinsic noise.

This page hosts some of the results of project EP/M002454/1, which aims to use a systems and control engineering approach based on modelling, abstraction, standardisation and the development of new bio-feedback modules to target specific uncertainties in the cell.

Design of Biocontrollers

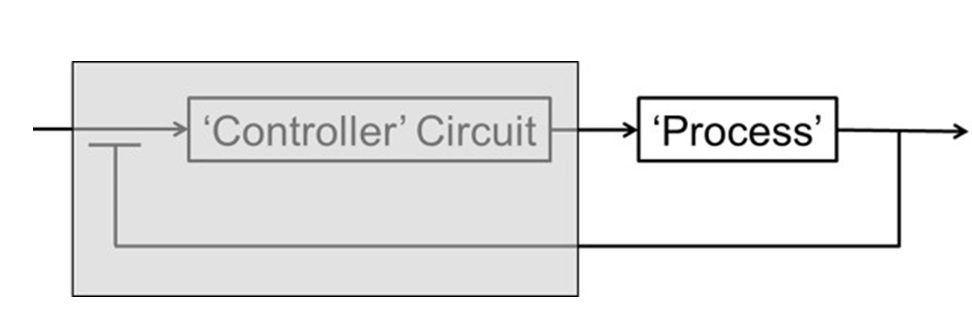

This project focusses on the design and implementation of biofeedback controllers to achieve different objectives: in particular, mitigating uncertainties/noise inside the cellular environment. In our work, we have provided solutions relevant to the structural design of controllers so that the modified (closed-loop) system achieves different performance characteristics under different constraints, and we have also elucidated various implementation approaches and their advantages.

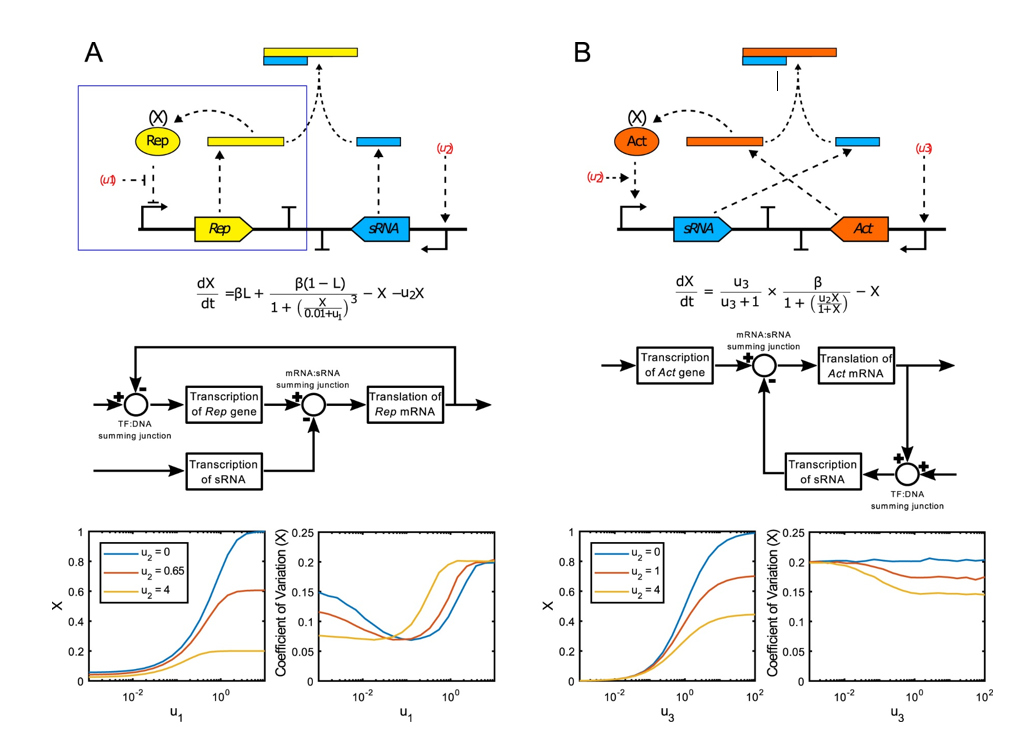

Moreover, we have implemented our designs in vivo as DNA, RNA and protein-based biocontrollers. In particular, we used integrase-excisionase feedback regulation, small RNA (sRNA) implementations and protein phosphorylation/de-phosphorylation approaches for implementing the various controller approaches, therefore demonstrating experimentally the engineered properties.

Chi.Bio - an automated experimental platform

In 2019 we launched Chi.Bio, invented by Dr Harrison Steel. Chi.Bio is an automated experimental platform with applications in biotechnology. More information can be found on the Chi.Bio website.
